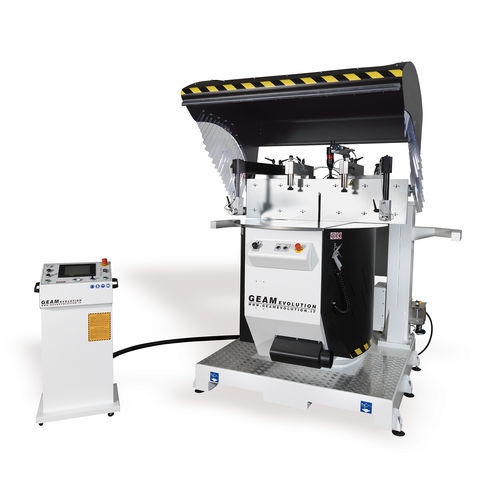

Blade cutting machine MANTA 850 E

for PVCfor aluminumprofile

Single head cutting off machine with blade Ø 850mm, adjustable feed speed of the blade, electronic pivoting readable digital disply. The blade is started by an inverter, which allows the rotation speed to be adjusted, this device allows a better start and stop of the blade. The machine has been created to make large cuts in aluminum and PV.C.. For optimal work, it is recommended to install roller conveyors with programmable stops. TECHNICAL DATA: Hardened-steel work Three-phase motor power 7,5 Kw Blade elevation on ball-bearing guides and runners Hydro-pneumatic blade feeding Electronic pivoting inwards/outwards head from 20° right to 20° left with brushless motor Start of cutting cycle with two-hand safety device nr.2 adjustable pneumatic vertical clamps with low-pressure device nr.2 adjustable pneumatic horizontal clamps with low-pressure device Automatic closing and opening Carter protection of the cutting area Micro-mist oil tool lubrication Ready for loading/unloading roller conveyor connection Ready for shavings extraction fann connection Ø120mm Movable console system with Industrial PLC with touch-screen 8″ USB connection Overall dimensions: 220x210x250 cm
