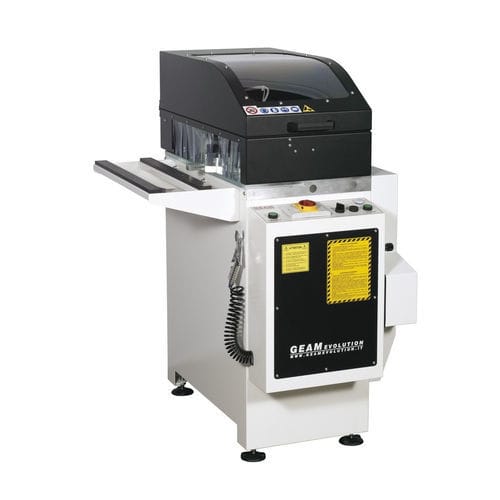

Aluminum end milling machine PIRANHA A
variable-anglepneumaticfor profiles

Aluminum end milling machine - PIRANHA A - geam evolution srl - variable-angle / pneumatic / for profiles
Aluminum end milling machine - PIRANHA A - geam evolution srl - variable-angle / pneumatic / for profiles
Aluminum end milling machine - PIRANHA A - geam evolution srl - variable-angle / pneumatic / for profiles - image - 2
Aluminum end milling machine - PIRANHA A - geam evolution srl - variable-angle / pneumatic / for profiles - image - 3
Aluminum end milling machine - PIRANHA A - geam evolution srl - variable-angle / pneumatic / for profiles - image - 4
Aluminum end milling machine - PIRANHA A - geam evolution srl - variable-angle / pneumatic / for profiles - image - 5
Aluminum end milling machine - PIRANHA A - geam evolution srl - variable-angle / pneumatic / for profiles - image - 6
Add to favorites
Compare this product


Characteristics

Treated material
for aluminum
Options
for profiles, pneumatic, variable-angle

Description

Horizontal end milling machine with automatic feeding, milling at 45°/ 90°/ -45° and intermediate degree with quick change of the cutter block. Cutter block spindle Ø 32 mm Sliding horizontal stroke 480 mm Max diameter of the cutters 185 mm Min. working pressure 7 bar Overall dimensions: 82x98x124 cm Weight: 130 kg STANDARD EQUIPMENT: Pneumatic clamping set Turret stop for presetting 6 milling depths Pneumatic spray mist lubrication Cutter block D. 32mm Air Filter Air Gun Full protection guard ACCESSORI A RICHIESTA: Cutter block Ø32mm Single phase motor
