Gravity conveyor TYPE 330 series

rollerstraightelectric drive

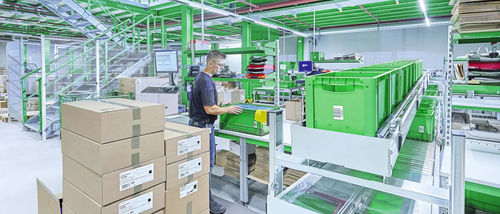

Container and Carton Conveyor Technology Straight Sections & Accumulation The GEBHARDT gravity roller conveyor is suitable for transporting containers, trays and cartons. The conveyance good is not moved by a drive, but only by gravity. The track's angle of inclination can be defined in the interval from 0° to 28° depending on the respective conveying requirements. Due to the gravity roller conveyor's inclination, the conveyance good moves at a moderate speed to the end of the conveyor, where it is stopped by an end stop. Depending on the unit type, the carrying means are either cylindrical rollers made of galvanised steel tubes or plastic rollers. Noise-insulated carrier rollers can be used as an option to reduce noise emissions. The unit is used indoors at normal room temperature. Roller Conveyor • Conveyor without drive • Suitable for transporting containers, cartons and other load carriers • Gravity Wheel Track • Conveyor without drive • Suitable for transporting containers, cartons and other load carriers Advantages of Container and Carton Conveying Technology • High throughput and continuous productivity • Optimisation of workflows thanks to the basic ergonomic concept • Modular and scalable conveyor systems • Comprehensive consultation and fast supply of spare parts • State-of-the-art technology and reliable components • High quality through in-house production and DIN EN ISO 9001:2015 certification
