Roller conveyor TYPE 310 series

straighttransportelectric drive

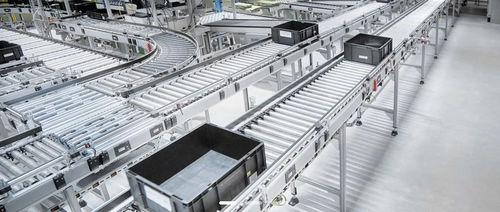

Container and Carton Conveyor Technology Straight Sections & Accumulation The GEBHARDT roller conveyor is suitable for transporting containers, trays and cartons. The frame profile is GEBHARDT's proprietary aluminium profile. The carrying rollers are made of galvanised steel tubes fitted with low-noise ball bearings. Various drive variants can be used depending on the application. In addition to motor rollers (24V), tangential drives with varying belt types, drive stations under the track (400V), the roller conveyors can also be driven via overdrive from the adjoining conveyor module. Long distances in the material flow can be bridged at a high speed using the roller conveyors. In addition, roller conveyors often serve as a connecting link between different conveyor modules. The unit is used indoors at normal room temperature. Tangential drive via V-belt The carrier rollers are driven by a V-belt Suitable for transporting containers, and cartons Tangential drive via flat belt It is driven by a 30 mm wide flat belt Suitable for transporting containers, and cartons Drive via motor roller The carrier rollers are driven by 24V motor rollers Suitable for transporting containers, and cartons Drive under the track Drive is provided via three-phase gear motors under the track Suitable for transporting containers, and cartons Overdrive Drive takes place by overdrive from a surrounding conveyor Suitable for transporting containers, and cartons
