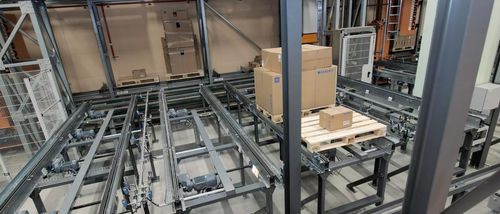

Chain conveyor TYP 505 series

horizontalfor wire meshfor pallet

The GEBHARDT chain conveyor is suitable for transporting pallets, wire mesh pallets and roller containers. The frame profile is made of galvanised sheet steel. The ¾" single duplex chain, in accordance with DIN 8187, runs in a plastic glide channel with excellent sliding properties. The drive station is located between the chain strands. The chain conveyor can also run in reverse. The driven overlap on the chain crossovers guarantees high transport quality. The chain conveyor is used in normal room temperature and up to -30 °C in deep-freeze areas. Optionally, tread plates can be fitted between the chain strands, traversing devices, transfer flaps and side guides. Use outdoors and in wet areas (protection class IP67) is also possible. 2-strand, with 3/4"’ duplex chain The drive station is located between the chain strands Suitable for transporting pallets, wire mesh pallets and roller containers 3-strand, with 3/4"’ duplex chain The drive station is located between the chain strands Suitable for transporting pallets, wire mesh pallets and roller containers 4-strand, with 3/4"’ duplex chain The drive station is located between the chain strands Suitable for transporting pallets, wire mesh pallets and roller containers 2-strand, with 5/8"’ duplex chain It is driven by a gear motor Suitable for transporting Europool and chemical pallets, wire mesh pallets and other load carriers Download now 3-strand, with 5/8"’ duplex chain It is driven by a gear motor Suitable for transporting Europool and chemical pallets, wire mesh pallets and other load carriers Up to max. 4,000 kg
