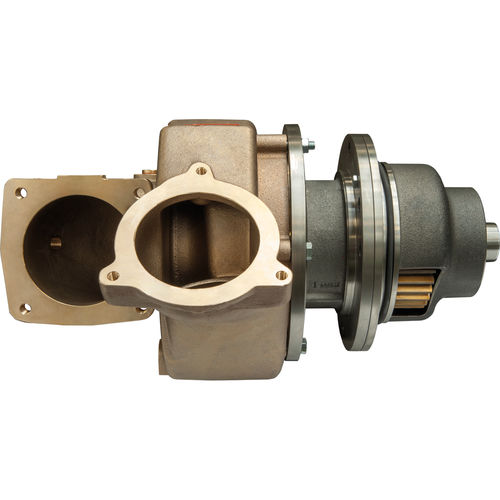

Centrifugal pump for seawaterdieselself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for seawater
- Operation
- diesel
- Priming
- self-priming
- Domain
- industrial
- Applications
- cooling
- Material
- cast iron
- Other characteristics
- flange-mounted
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 350 m³/h
(12,360.13335 ft³/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 5 bar
(72.519 psi)
Description
Steimel seawater pumps are used for cooling via heat exchanger of high and medium-speed diesel and gas engines. The gear driven pump is flange-mounted to the engine’s gear box. Belt driven pump is available as an alternative. Self-priming function is featured in certain models.
Designs and key data of seawater pumps:
- Centrifugal pump or side-channel pump models
- Flow rate up to 350 m³ / h
- Pressure rise: max. 5 bar
- Temperature range: 0 to 35 °C
- Self-priming possible depending on model
- Material design:
- Drive shaft: Stainless steel
- Impeller and housing: Seawater-resistant bronze
- Bearing housing: Grey cast iron
