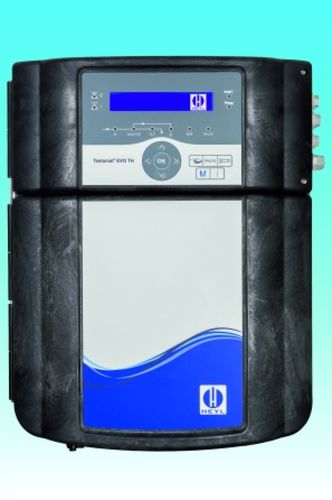

Water analyzer Testomat® EVO TH

monitoringprocesstemperature

The Testomat® EVO TH automatically determines the water hardness by titration. It was developed from the Testomat ECO® and will provide you with a lot of new functions additionally to the approved functions which are: integrated SD card, firmware update via SD card and data transmission via WLAN access point and many more. Application water treatment plants industrial boilers monitoring of process water drinking water plants Measuring range 0.05-25 °dH water hardness (depending on the choice of the indicator) Technical Data Power supply: 230 VAC, 24 VAC all 50–60Hz or multi voltage power supply unit 100-240 VAC / 100-353 VDC Power consumption: max. 30 VA Protection class: I Degree of protection: IP 65 Ambient temperature: 10–40 °C, 50 - 104°F Dimensions (B x H x T): 380 x 480 x 280 mm Weight: approx. 9.0 kg Menu languages: German, English, French, Dutch (others upon request) Mains water supply Operating pressure: 1 to 8 bar (15 to 116 psi) or 0,3 to 1 bar (5 to 15 psi), after removing of the valve body out of the regulator/filter housing Water inlet: Opaque hose with 6 mm external diameter/4 mm internal diameter Water outlet: Hose with 12 mm internal diameter Water temperature: 10 to 40 °C; 50 to 104°F
