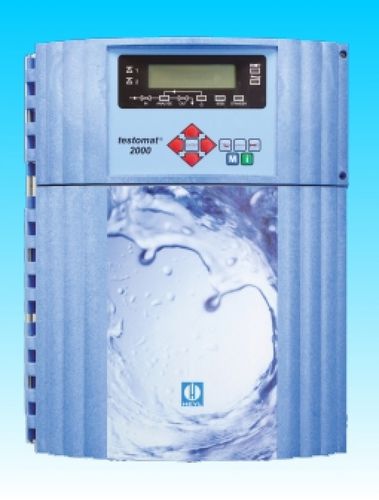

Chromium analyzer Testomat 2000® CrVI

monitoringprocesstemperature

The Testomat 2000® CrVI process photometer is a robust wet-chemical online monitor used to monitor chromate content (CrO42-) within the range of 0 to 2.0 mg/l, or hexavalent chromium (CrVI) within the range of 0 to 1.0 mg/l. The device operates with a photometric analysis principle on the basis of the DIN 38405 standard. Application monitoring of chromate content waste water in galvanization plants control of waste water in the metalworking industry Measuring range Chromate CrO4: 0,00 – 0,99 mg/l or ppm (resolution 0,01) 1,0 – 2,0 mg/l or ppm (resolution 0,1) Chromium VI: 0,00 – 0,99; 1,0 mg/l or ppm (resolution 0,01) Technical Data Power supply: 230–240 VAC, 115 VAC, 24 VAC all 50–60Hz Power consumption: max. 30 VA Protection class: I Degree of protection: IP 65 Ambient temperature: 10–45 °C, 50 - 104°F Option: booster pump see accessories Dimensions (B x H x T): 380 x 480 x 280 mm Weight: approx. 9.5 kg Menu languages: German, English, French (others upon request) Mains water supply Operating pressure: 1 to 8 bar (15 to 116 psi) or 0,3 to 1 bar (5 to 15 psi), after removing of the valve body out of the regulator/filter housing Water inlet: Opaque hose with 6 mm external diameter/4 mm internal diameter Water outlet: Hose with 6 mm external diameter/4 mm internal diameter Water temperature: 10 to 40 °C; 50 to 104°F
