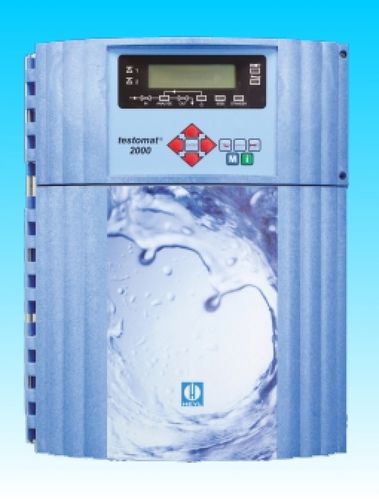

Phosphate analyzer Testomat 2000® PO4

watermonitoringprocess

The process photometer Testomat 2000® PO4 is a robust wet-chemical online monitor for monitoring the phosphate content from 0 to 10 mg/l (ppm) using the photometric analysis principle. Application Process water monitoring Production water purification Wastewater treatment (wastewater treatment plants, biogas plants) Online environmental analyses Measuring range 0.0-10.0 mg/l with a resolution of: - 0,1 mg/l in the range of 0 – 7 mg/l - 0,25 mg/l in the range of 7 – 10 mg/l Limit of detection: 0,1 mg/l or 0,25 mg/l depending on range Accuracy: < 10% at end of measuring range Technical Data Power supply: 230–240 VAC, 115 VAC, 24 VAC all 50–60Hz Power consumption: max. 30 VA Protection class: I Degree of protection: IP 65 Ambient temperature: 10–45 °C, 50 - 113°F Option: booster pump see accessories Dimensions (B x H x T): 380 x 480 x 280 mm Weight: approx. 9.5 kg Menu languages: German, English, French, Dutch, Spanish (others upon request) Mains water supply Operating pressure: 1 to 8 bar (15 to 116 psi) or 0,3 to 1 bar (5 to 15 psi), after removing of the valve body out of the regulator/filter housing Water inlet: Opaque hose with 6 mm external diameter/4 mm internal diameter Water outlet: Hose with 6 mm external diameter/4 mm internal diameter Water temperature: 5 to 30 °C; 41 to 86°F
