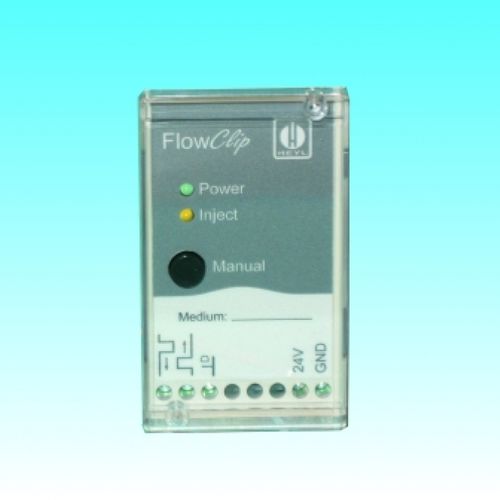

Centrifugal pump FlowClip®waterindustrialfeed
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Domain
- industrial
- Applications
- feed
- Other characteristics
- automatic
- Flow
0.1 l/min
(0.02642 us gal/min)- Power
3.4 W
(0 hp)
Description
We have developed the feeding pump FlowClip® for use in our Testomat 2000® self clean series. The pump automatically fills the measuring chamber system with cleaning solution and flushes the measuring chamber after analysis..
Technical Data
Flow rate at atmospheric pressure: 0,1 l/min
Maximum suction head: 3 mWS self-priming
Maximum pressure head: 10 mWS
Power supply: 24 V DC
Power consumption: 3.4 W
Weight approx. 600 g
Ambient Temperature: +5...+45°C
Medium Temperature: +5...+40°C
