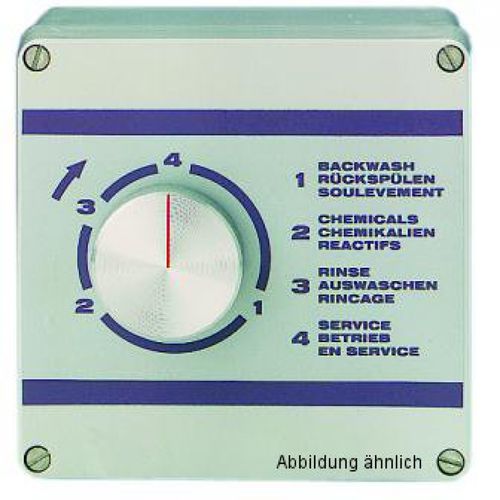

Valve controller PVH / PVH 4

Hydraulic pilot distributor PHV bzw. PHV 4 with four switch settings for the operation of depressurized opened or closed valves. Application Controlling single valves in automatic water treatment systems Technical Data Mains connection : 230–240 VAC, 24 VAC +/-10% all 50–60Hz Power consumption: max. 5 VA Protection class: I Protection type: IP 44 Dimensions (W x H x D): 125 x 120 x 210 mm / 4.9" x 4.7" x 8.3" Weight: approx. 1.5 kg / 3.3 lbs Ambient temperature: 0 - 45°C / 32-113°F toggle switch for 8 bar (116 PSI) hydraulic pressure or 4.5 bar (65.3 PSI) pneumatic pressure without screw connections
