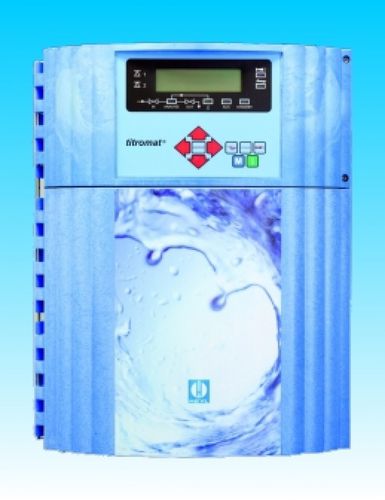

Carbonate hardness monitoring device Titromat® KH

water

Titromat® KH is used for automatically determining and monitoring the carbonate hardness for high hardness measuring ranges. Application alkalinity of open coolant circuits Measuring range (resolution) 5 - 150 °KH (5) 2 - 60 °KH (2) Technical Data Power supply: 230–240 VAC, 115 VAC, 24 VAC all 50–60Hz Power consumption: max. 30 VA Protection class: I Degree of protection: IP 65 Ambient temperature: 10–45 °C, 50 - 104°F Dimensions (B x H x T): 380 x 480 x 280 mm Weight: approx. 9.5 kg Menu languages: German, English, French (others upon request) Mains water supply Operating pressure: Dependig on product configuration: 0.3 – 1 bar / 0.3 x 105 to 4 x 105 Pa 1 - 4 bar / 1 x 105 to 4 x 105 Pa (a pressure reducer (special accessory) should be used from 4 to 8 bar range) Water inlet: Opaque hose with 6 mm external diameter/4 mm internal diameter Water outlet: Hose with 6 mm external diameter/4 mm internal diameter Water temperature: 10 to 40 °C; 50 to 104°F
