Vehicle-mount sweeper UKM

hydraulicfor public spacedust

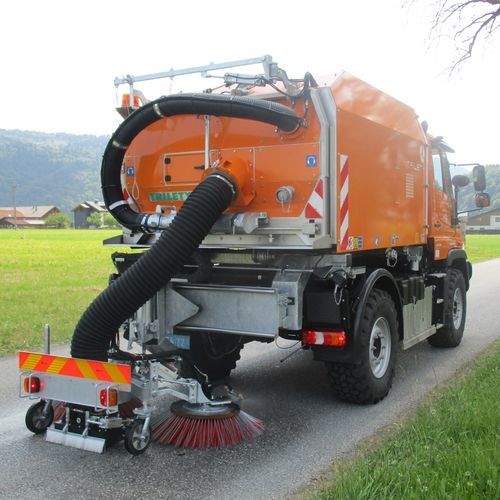

The rear-sided sweeper-attachment UKM is designed as quick exchangeable system for Unimog chassis with front PTO but without high-performance hydraulic system. The minimum wheelbase for that type is 2,600 mm. The UKM is available up to wheelbases of 3,900 mm (U530 long). The hopper volumes are from 3.0 m³ up to 5.8 m³. For the integrated watertanks the volumes vary from 620 l to 1,000 l. Hopper Mounted onto the ballpoints of the chassis and equipped with its own hydraulical tipping system. For easier maintenance and cleaning of the hopper the exhaust-air-grids are opened pneumatically Rear-sided sweeping system 2 swivelable hydraulical driven disc-brushes, stepless adjustable brush speed, automatically bulky debris flap, 220mm suction hose, pneumatical lifting function, hydraulical swivelfunction for draining the hopper, hydraulical side-shift function High performance suction fan Hydraulically driven with airvolume of approx. 11,000m³/h. Bigger fans on request!
