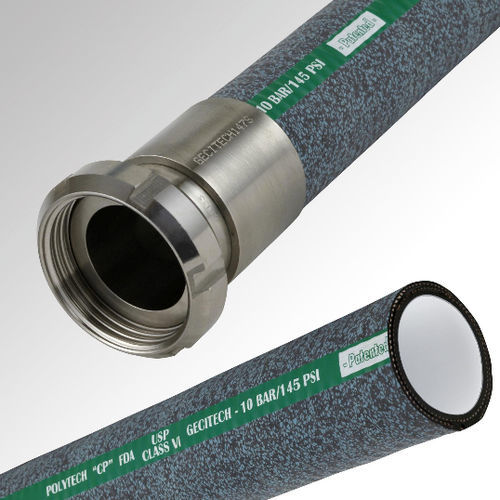

Chemical product hose POLYTECH® CPfoodstuffstainless steelgalvanised steel
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products, foodstuff
- Material
- stainless steel, galvanised steel, PFA
- Applications
- transfer, for the chemical industry, for the food industry, for the pharmaceutical industry, for the cosmetic industry
- Norms
- DIN
- Other characteristics
- smooth, standard, anti-static, rugged
- Inner diameter
Max.: 100 mm
(3.937 in)Min.: 13 mm
(0.512 in)- Outer diameter
Max.: 116 mm
(4.567 in)Min.: 25 mm
(0.984 in)- Pressure
10 bar
(145.038 psi)- Temperature
Max.: 130 °C
(266 °F)Min.: -30 °C
(-22 °F)- Delivered length
20 m
(65'07" )
Description
White PFA, ultra smooth and non-adherent, textile ply and galvanized steel wires embedded in the wall. Blue/black marbled finish and antistatic.
Product highlights
Robust hose for the transfer of food, pharmaceuticals and chemicals products using bipolar solvents in explosive area
Assembling possibilities
The 316L stainless steel swaged fittings are monoblocs (without welding) in accordance with the NRS® design (Non Retention System). All kinds of fittings available on request (SMS, DIN, CLAMP, RJT, ISS, FIL, GAS, NPT, JIC, FLANGES, etc.).
Catalogs
POLYTECH®
2 Pages
