Chemical product hose POLYSIL®
foodstuffsiliconePFA

Chemical product hose - POLYSIL®  - GECITECH SAS - foodstuff / silicone / PFA
Chemical product hose - POLYSIL®  - GECITECH SAS - foodstuff / silicone / PFA
Chemical product hose - POLYSIL®  - GECITECH SAS - foodstuff / silicone / PFA - image - 2
Add to favorites
Compare this product


Characteristics

Use
for chemical products, foodstuff
Material
silicone, PFA
Applications
high-temperature, transfer, for vacuum, for the chemical industry, for the food industry, for the pharmaceutical industry, for the cosmetic industry
Norms
DIN
Other characteristics
smooth, standard, corrosion-resistant, wire-reinforced
Inner diameter

Max.: 63 mm
(2.48 in)

Min.: 13 mm
(0.512 in)

Outer diameter

Max.: 79 mm
(3.11 in)

Min.: 23.5 mm
(0.925 in)

Pressure

10 bar
(145.038 psi)

Temperature

Max.: 130 °C
(266 °F)

Min.: -30 °C
(-22 °F)

Delivered length

5.7 m
(18'08" )

Description

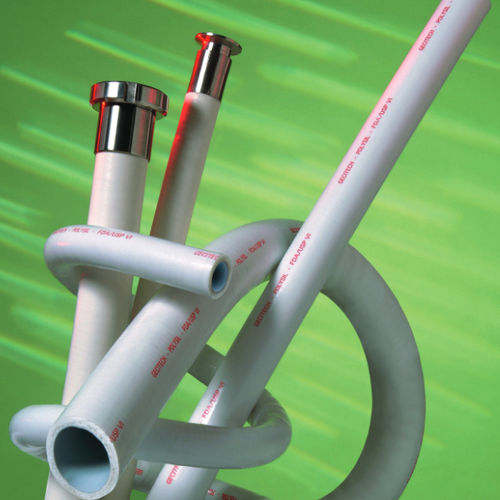

White smooth PFA, textile reinforcements and stainless steel wiring HR* embedded in the silicone wall. Outer surface, white platinum cured silicone. Product highlights Ideal for the transfer of food, pharmaceuticals, biotechnologies and cosmetics products and all aggressive products even at high temperature Autoclavable hose No product migration through the hose wall Easy to clean Good vacuum capability *HR : high resistance against under stress corrosion Assembling possibilities The 316L stainless steel swaged fittings are mono-block (without welding) in accordance with the NRS® design (Non Retention System). The hose can be also supplied with the reusable MSP ® fitting (please contact us). All kinds of fittings available on request (SMS, DIN, CLAMP, RJT, ISS, FIL, GAS, NPT, JIC, FLANGES, etc).
