Foodstuff hose DEPOTAL® ANNELEEPDMsteelsynthetic
Add to favorites
Compare this product
Characteristics
- Use
- foodstuff
- Material
- EPDM, steel, synthetic
- Applications
- chemistry, for the food industry, for the pharmaceutical industry, for the cosmetic industry
- Norms
- DIN
- Other characteristics
- flexible, abrasion-resistant, standard, rugged, corrugated, spiral wire
- Inner diameter
Max.: 152 mm
(5.984 in)Min.: 25 mm
(0.984 in)- Outer diameter
Max.: 172 mm
(6.772 in)Min.: 37 mm
(1.457 in)- Pressure
4 bar, 6 bar, 10 bar
(58.015 psi, 87.023 psi, 145.038 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -30 °C
(-22 °F)- Delivered length
40 m
(131'02" )
Description

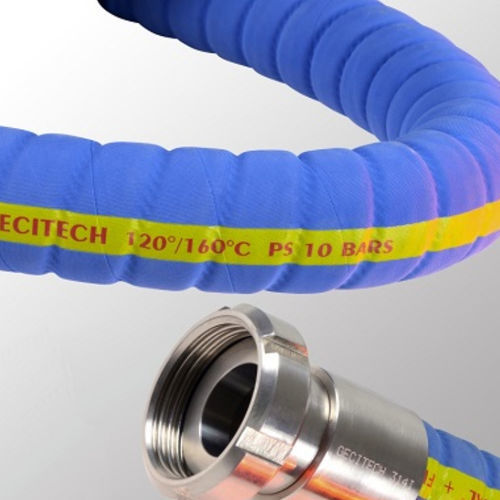

White EDPM, synthetic reinforcement ply and steel wire. Outer surface corrugated blue EPDM rubber.
Product highlights
High flexibility for flow control panel, etc
Robust hose recommended for all types of food products except oily and fat ones
Excellent rub and abrasion resistance
Good vacuum capability
Assembling possibilities
The 316L stainless steel swaged fittings are monoblocs (without welding) in accordance with the NRS® design (Non Retention System). All kinds of fittings available on request (SMS, DIN, CLAMP, RJT, ISS, FIL, GAS, NPT, JIC, FLANGES, etc).
