Foodstuff hose 319348 seriesstainless steelPTFEtransfer
Add to favorites
Compare this product
Characteristics
- Use
- foodstuff
- Material
- stainless steel, PTFE
- Applications
- transfer, chemistry, for the food industry, for the pharmaceutical industry, for the cosmetic industry
- Norms
- DIN
- Other characteristics
- smooth, vacuum, reinforced, braided
- Inner diameter
Max.: 25.4 mm
(1 in)Min.: 4.8 mm
(0.189 in)- Outer diameter
Max.: 29.3 mm
(1.154 in)Min.: 7.4 mm
(0.291 in)- Pressure
Max.: 264 bar
(3,828.996 psi)Min.: 20 bar
(290.075 psi)- Temperature
Max.: 260 °C
(500 °F)Min.: -70 °C
(-94 °F)
Description

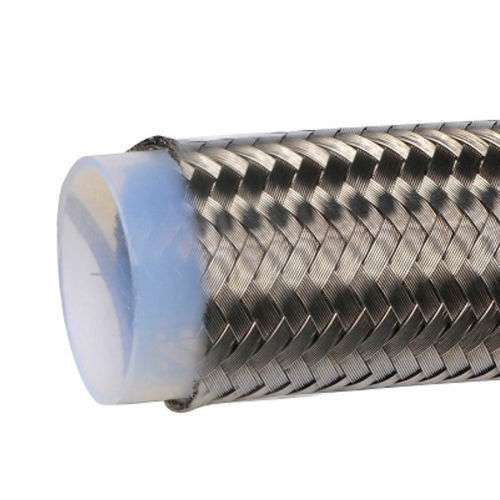

Smooth bore PTFE hose. Outer surface reinforced by a 304L stainless steel braid.
Product highlights
Ideal for the transfer of chemical products, steam circuit even at high temperature and pressure
Non-adherent characteristic allows a good flow of the transfer fluid with minimum pressure loss
Assembling possibilities
The 316L stainless steel swaged fittings are monoblocs (without welding) in accordance with the NRS® design (Non Retention System). All kinds of fittings available on request (SMS, DIN, CLAMP, RJT, ISS, FIL, GAS, NPT, JIC, FLANGES, etc).
