Chemical product hose 4406C0206foodstuffstainless steelPTFE
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products, foodstuff
- Material
- stainless steel, PTFE
- Applications
- high-pressure, high-temperature, transfer, chemistry, for the food industry, for the pharmaceutical industry, for the cosmetic industry
- Norms
- DIN
- Other characteristics
- smooth, reinforced, braided
- Inner diameter
Max.: 26 mm
(1.024 in)Min.: 5 mm
(0.197 in)- Outer diameter
9.5 mm, 11 mm
(0.374 in, 0.433 in)- Pressure
Max.: 205 bar
(2,973.274 psi)Min.: 68 bar
(986.257 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -50 °C
(-58 °F)
Description

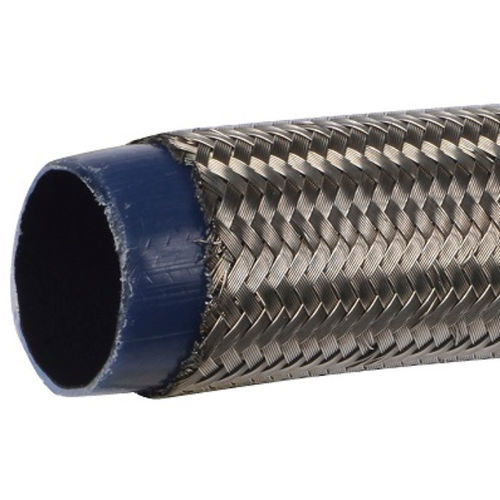

Smooth PTFE bore hose carbon-loaded. Outer surface reinforced by a stainless steel braid 304L.
Product highlights
Ideal for the transfer of chemical products, solvents, steam both at high temperature and pressure in explosive areas
The non-stick quality of the PTFE allows a good flow of the conveyed liquids and with a minimum pressure loss
Assembling possibilities
The 316L stainless steel swaged fittings are monoblocs (without welding) in accordance with the NRS® design (Non Retention System). All kinds of fittings available on request (SMS, DIN, CLAMP, RJT, ISS, FIL, GAS, NPT, JIC, FLANGES, etc.).
