Foodstuff hose 4414A020 seriesPTFEstainless steelfor vacuum
Add to favorites
Compare this product
Characteristics
- Use
- foodstuff
- Material
- stainless steel, PTFE
- Applications
- for vacuum, chemistry, for the food industry, for the pharmaceutical industry, for the cosmetic industry
- Norms
- DIN
- Other characteristics
- reinforced
- Inner diameter
Min.: 6.2 mm
(0.244 in)Max.: 51.4 mm
(2.024 in)- Outer diameter
Min.: 9.4 mm
(0.37 in)Max.: 60 mm
(2.362 in)- Pressure
Min.: 23 bar
(333.587 psi)Max.: 172 bar
(2,494.649 psi)- Temperature
Min.: -70 °C
(-94 °F)Max.: 260 °C
(500 °F)
Description

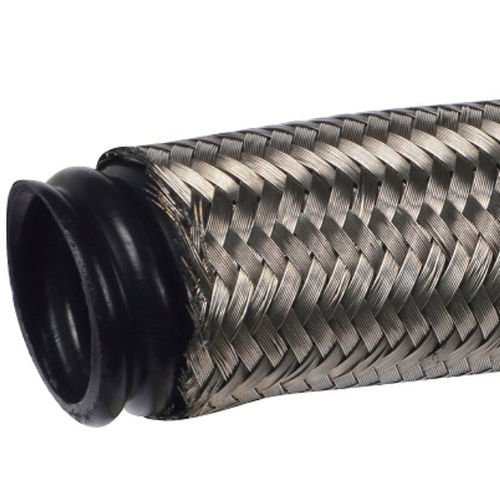

Convoluted carbon-filled PTFE hose. Outer surface reinforced by a 304L stainless steel braid.
Product highlights
Used for applications requiring a very good temperature holding
Hose with high flexibility and very resistant against solvents and other chemical agents even in explosive areas
Assembling possibilities
The 316L stainless steel swaged fittings are monoblocs (without welding). All kinds of fittings available on request (SMS, DIN, CLAMP, RJT, ISS, FIL, GAS, NPT, JIC, FLANGES, etc.).
