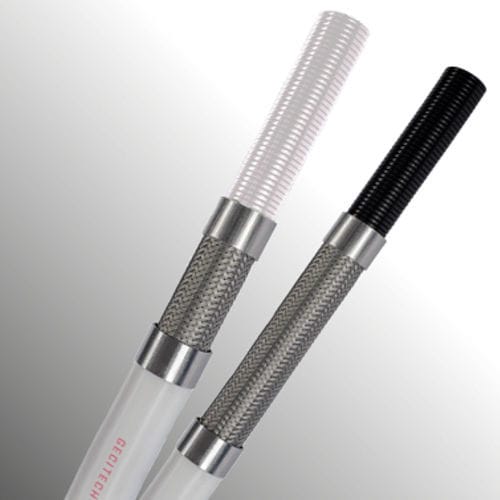

Foodstuff hose SILFLON SC/SCA®
PTFEstainless steelsilicone

Foodstuff hose - SILFLON SC/SCA® - GECITECH SAS - PTFE / stainless steel / silicone
Foodstuff hose - SILFLON SC/SCA® - GECITECH SAS - PTFE / stainless steel / silicone
Foodstuff hose - SILFLON SC/SCA® - GECITECH SAS - PTFE / stainless steel / silicone - image - 2
Add to favorites
Compare this product


Characteristics

Use
foodstuff
Material
stainless steel, silicone, PTFE
Applications
chemistry, for the food industry, for the pharmaceutical industry, for the cosmetic industry
Norms
DIN
Other characteristics
standard, braided
Inner diameter

Min.: 13.4 mm
(0.528 in)

Max.: 49.5 mm
(1.949 in)

Outer diameter

Min.: 22 mm
(0.866 in)

Max.: 64.2 mm
(2.528 in)

Pressure

Min.: 30 bar
(435.113 psi)

Max.: 60 bar
(870.226 psi)

Temperature

Min.: 60 °C
(140 °F)

Max.: 260 °C
(500 °F)

Delivered length

22 m
(72'02" )

Description

Virgin or antistatic PTFE inner tube, stainless steel braid reinforcement, white silicone covering Products highlights: Great flexibility Ideal for transferring food, pharmaceutical and cosmetic products Food quality inner tube No retention, easy cleaning High resistance against stress corrosion Perfect for fittings on the bridging boards Available in antistatic version with a carbon-filled PTFE inner tube: SILFLON SCA® Assembling possibilities The 316L stainless steel swaged fittings are mono-blocks (without welding) in accordance with the NRS® design (Non Retention System). All kinds of fittings available on request (SMS, DIN, CLAMP, RJT, ISS, FIL, GAS, NPT, JIC, FLANGES, etc).
