Foodstuff hose VTA® steelstainless steelelastomer
Add to favorites
Compare this product
Characteristics
- Use
- foodstuff
- Material
- elastomer, steel, stainless steel
- Applications
- chemistry, for the food industry, for the pharmaceutical industry, for the cosmetic industry
- Norms
- DIN
- Other characteristics
- flexible, standard, braided
- Inner diameter
Max.: 38 mm
(1.496 in)Min.: 13 mm
(0.512 in)- Outer diameter
Max.: 52 mm
(2.047 in)Min.: 27 mm
(1.063 in)- Pressure
20 bar, 30 bar
(290.075 psi, 435.113 psi)- Temperature
Max.: 170 °C
(338 °F)Min.: -40 °C
(-40 °F)- Delivered length
60 m
(196'10" )
Description

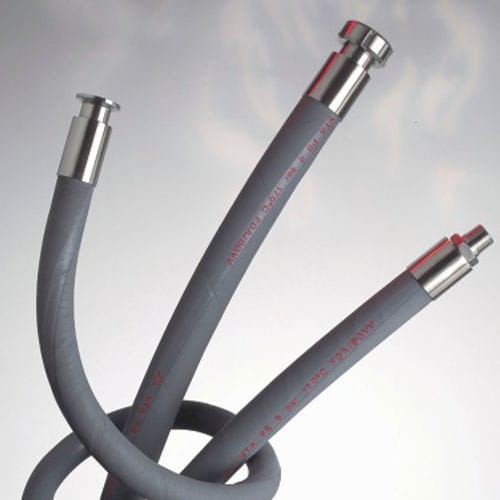

White Butyl with steel braid reinforcement embedded in the wall.
Outer surface microperforated grey Butyl.
Product highlights
Very flexible and robust hose improving operator safety
A versatile hose compatible with most food products in high pressure and non-permanent steam
Long manufacturing lengths
Assembling possibilities
The 316L stainless steel swaged fittings are monoblocs (without welding) in accordance with the NRS® design (Non Retention System). All kinds of fittings available on request (SMS, DIN, CLAMP, RJT, ISS, FIL, GAS, NPT, JIC, FLANGES, etc).
