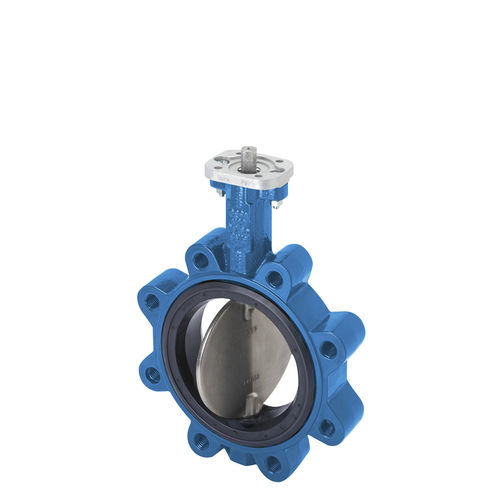

Butterfly valve KG 4electrically-actuatedfor waterfor chemicals
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electrically-actuated
- Media
- for water, for chemicals
- Body
- soft-seat, lug type, stainless steel, iron
- Applications
- for the chemical industry, for the food industry, for water treatment, for shipbuilding, for the paper industry, for the mining industry
- Associated function
- transfer, sewage
- Other characteristics
- ISO, ANSI, DIN
- DN
Max.: 500 mm
(19.685 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -30 °C
(-22 °F)
Description
Lug type butterfly valve for installation between flanges EN 1092, PN 10/16, ASME class 150. One-piece body, selfcentring, two-piece disc and stem connection, bubble-tight up to 10 bar, vacuum-tight. The pipeline can be removed from the flange on one side.
Face-to-face dimension DIN EN 558 line 20 API 609 table 1
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 leakage rate A
Certifications CE-Marking, TA Luft, FDA approval, food certification 1935/2004, ATEX
