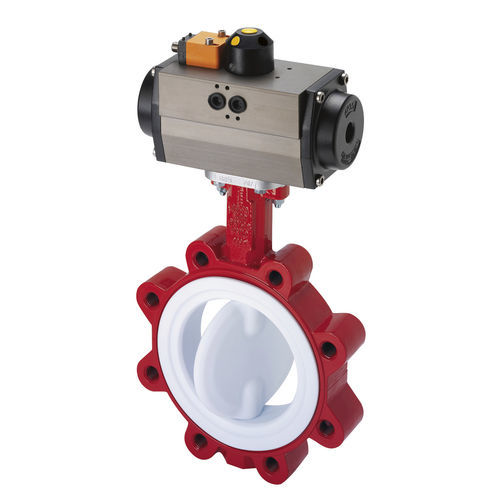

Butterfly valve KG 8pneumatically-operatedfor waterflange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatically-operated
- Media
- for water
- Body
- flange, lug type, 2-piece, stainless steel, cast iron, cast steel, PTFE-lined
- Applications
- for the chemical industry, for the food industry, for the petroleum industry, for pipe
- Associated function
- sewage
- Other characteristics
- ISO, ANSI, DIN
- DN
Min.: 50 mm
(1.969 in)Max.: 300 mm
(11.811 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 180 °C
(356 °F)
Description
Lug type butterfly valve for installation between flanges EN 1092, PN 10/16, ASME class 150. Two-piece body, selfcentring, one-piece valve disc and stem, bubble-tight up to 10 bar.The pipeline can be removed from the flange on one side.
Face-to-face dimension DIN EN 558 line 20 API 609 table 1
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 Leakage rate A
Certifications CE-Marking, TA Luft, FDA approval, food certification 1935/2004, ATEX
