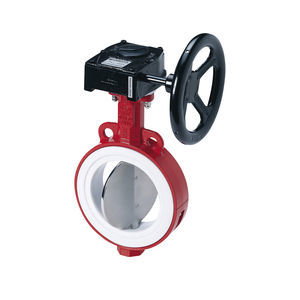

Butterfly valve K 16with handwheelshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Function
- shut-off
- Media
- for water
- Body$
- wafer, 2-piece, PTFE-lined
- Applications
- for the chemical industry, for the food industry, for the petroleum industry
- Material$
- stainless steel, cast iron
- Other characteristics
- ISO, ANSI, DIN
- DN
Max.: 600 mm
(23.622 in)Min.: 350 mm
(13.78 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -30 °C
(-22 °F)
Description
Wafer type butterfly valve for installation between flanges EN 1092, PN 10/16, ASME class 150. Two-piece body, selfcentring, one-piece valve disc and tem, bubble-tight up to 10 bar.
Face-to-face dimension DIN EN 558 line 20 API 609 table 1
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 Leakage rate A
Certifications CE-Marking, TA Luft, FDA approval, food certification 1935/2004, ATEX
