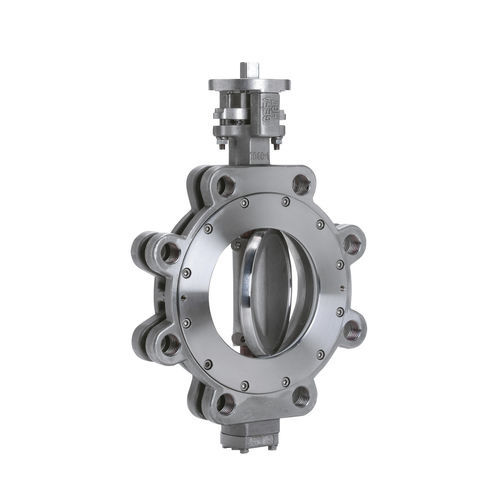

Butterfly valve HGT 7electricshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electric
- Function
- shut-off
- Media
- for water
- Body
- mounting flange, lug type, stainless steel, triple-offset
- Other characteristics
- ISO, DIN, high-pressure, bidirectional, high-performance, high-temperature, ATEX, low leak rate
- DN
Max.: 300 mm
(11.811 in)Min.: 80 mm
(3.15 in)- Pressure
10 bar, 16 bar, 25 bar, 40 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi)- Temperature
Max.: 450 °C
(842 °F)Min.: -50 °C
(-58 °F)
Description
Triple offset valve with lugs for high pressure and temperature loads. Can be removed from the flange on both sides. For installation between flanges EN 1092, PN 10/16/25/40, PS25, ASME Cl 150/300, PS25
Vacuum up to 1 mbar
FireSafe according to DIN EN ISO 10497 abd API 607
Face-to-face dimension DIN EN 558 line 20 Optional: line 25 and line 16 API 609 table 1
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 F20
Marking DIN EN 19, AD 2000
Certifications CE-Marking, TA Luft, ATEX, FireSafe, SIL
