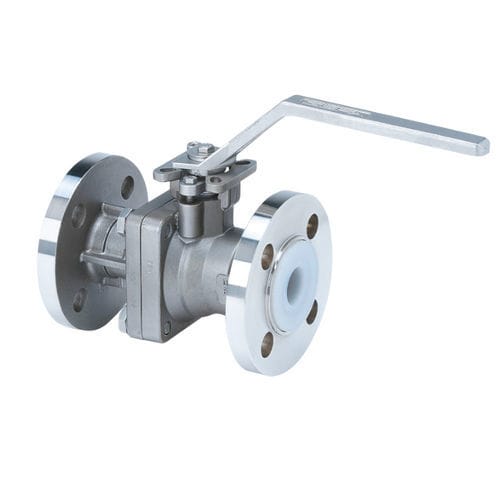

Ball valve FGTlevershut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- shut-off
- Media
- for water
- Body
- flange, 2-piece, stainless steel, steel, fluoropolymer, PFA-lined
- Applications
- for the chemical industry, for the food industry, process, for the petroleum industry, for the pharmaceutical industry, beverage
- Other characteristics
- ISO, DIN
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 270 °C
(518 °F)Min.: -50 °C
(-58 °F)
Description
PFA-lined flanged ball valve PN 10 -PN 40, class 150 with full bore. The material combination stainless steel 1.4408 (From DN 65 body made of steel epoxy coated, stainless steel upon request) on the outside and PFA fluoropolymer as lining coming into contact with the medium ensures a very good chemical resistance and the external corrosive influences are also considered. The interface according to EN ISO 5211 allows a costeffective automation and the direct mounting of actuating elements and actuators. The ball valve is also available according to food certification EG1935/2004.
Face-to-face dimension EN 558 line 1 (DIN3202-F1)
Mounting flange DIN EN ISO 5211
Flange connection EN 1092, PN 10 - PN 40, ASME B 16,5 - class 150
Certifications CE-Marking, TA Luft,FDA approval, Food certification 1935/2004
