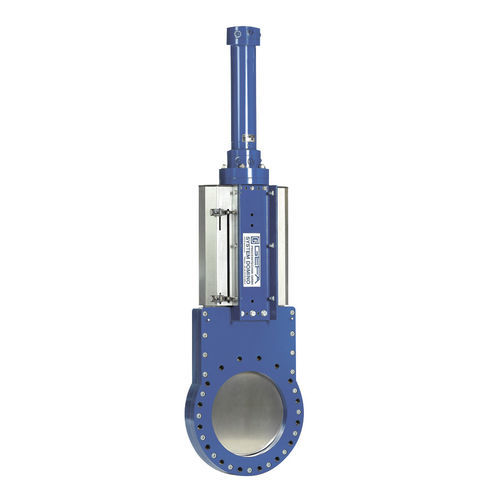

Knife gate valve AT 400 pneumatically-operatedregulatingfor water
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- pneumatically-operated
- Function
- regulating
- Media
- for water
- Body
- flange, lug type, 2-piece, stainless steel
- Applications
- for the chemical industry, for water treatment, for pump, for the mining industry, power line
- Other characteristics
- DIN, compact, bidirectional, ATEX
- DN
Max.: 1,200 mm
(47.244 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 2.5 bar
(36.3 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -30 °C
(-22 °F)
Description
Knife gate valve with completely round bore – with a special design according to customer requests possible. Lug type knife gate valve for installation between flanges acc. to EN 1092-1 / PN 2,5-PN 40. Special pressure classes, lengths and nominal sizes possible. Also suitable for dead-end service (SD 9). Two-piece body, bidirectional tight shutoff. Metal guided plate, locked when closed. Self-adjusting COMPACT cross seal. Optional: secondary sealing, readjustable from the outside. Cutting edge in the lower body area.
Face-to-face dimension according to e.g. EN 558-1 line 20/16/25 (DIN 3202 K1/K2/K3)
Body GGG40, EN GJS-400-15, steel, stainless steel
Plate Stainless steel 1.4301, 1.4571, 1.4462, etc.
Sealings NBR (EPDM, FPM, MVQ, etc.)
Certifications CE-Marking, FDA approval, ATEX
