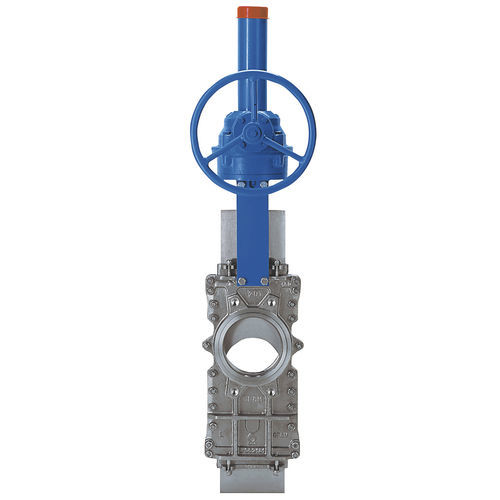

Knife gate valve CLwith handwheelpneumaticelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- with handwheel, pneumatic, electrically-actuated, hydraulically-operated
- Function
- shut-off
- Body
- 2-piece, stainless steel, cast iron
- Applications
- for the chemical industry, beverage, for the paper industry, for solids, conveying, power line
- Other characteristics
- ANSI, DIN, high-flow
- DN
Max.: 1,200 mm
(47.244 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 500 °C
(932 °F)Min.: -30 °C
(-22 °F)
Description
Knife-gate valve with two-piece body with continuous parallel valve blade for safe shut-off in both flow directions and free opening cross-section. Intermediate flange design in short face-to-face length. Particularly suitable for high flow velocities and media with a high degree of contamination. Main applications paper industry, chemical industry, power and steel plants, pneumatic conveying of solids.
Body material Cast iron GG 25, rust and acid resistant stainless steel 1.4408
Plate Rust- and acid-resistant stainless steel
Drive types Handwheel, hand lever, chain wheel, worm and bevel gears, pneumatic, hydraulic cylinders, electric rotary actuators
Catalogs
Valve technology catalogue
44 Pages
