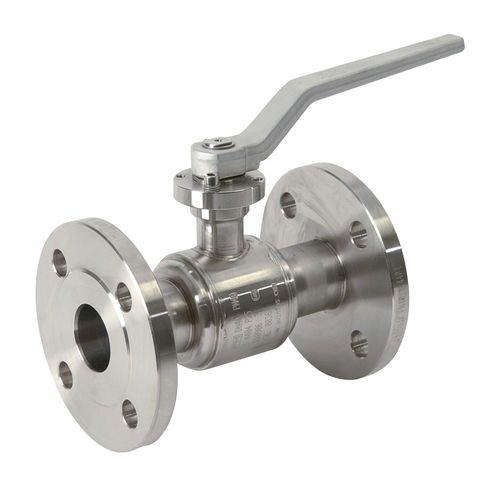

Ball valve PMleverfor chemical productsfor liquid food products and beverages
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for chemical products, for liquid food products and beverages
- Body
- flange, weld, 1-piece
- Applications
- for the chemical industry, for the food industry, process, for the petroleum industry, for pharmaceutical applications, beverage, welding
- Other characteristics
- ISO, ANSI, DIN, high-performance, fire-safe
- DN
Max.: 150 mm
(5.906 in)Min.: 8 mm
(0.315 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 370 °C
(698 °F)Min.: -60 °C
(-76 °F)
Description
Our high-performance ball valve PM is a one-piece, laser-welded design in 1.4404 with short welding ends. An integrated pressure relief system, a blow-out proof stem, a pre-stressed stop liner seal and virtually no dead space ensure the highest possible process reliability. In addition, the ball valve is FireSafe as standard.
Passage Full and reduced passage
Face-to-face dimension (flanged version EN 10921) EN 558 series 1, EN 558 series 27, ANSI B16.10
Welding ends female thread EN 102261, male thread DIN ISO 228-1
Body flange DIN EN ISO 5211
Test DIN EN 122661
