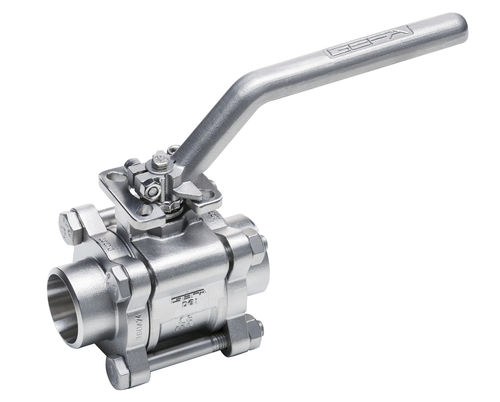

Ball valve DG1 1.4529 leverfor seawatermounting flange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for seawater
- Body
- mounting flange, 3-piece, stainless steel
- Other characteristics
- ISO, DIN, full-flow, corrosion-resistant
- DN
Max.: 150 mm
(5.906 in)Min.: 8 mm
(0.315 in)- Pressure
125 bar
(1,813 psi)
Description
Ball valve for applications in corrosive media (e.g. chlorides and dilute acids). With a PREN value between 42 and 47, suitable for seawater. 3-piece body, pressure class depending on the nominal size up to PN 125, floating ball, vaccum-thight.
Bore Full and reduce bore
Special features Can be combined with all kinds of end connectors
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12, Leakage rate A
