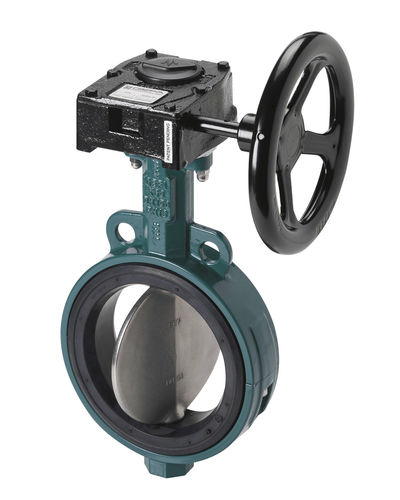

Butterfly valve KG 9manualfor watermounting flange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- manual
- Media
- for water
- Body
- mounting flange, wafer, 2-piece, stainless steel, PTFE-lined, line
- Applications
- for the chemical industry, for the food industry, for the petroleum industry, for water treatment
- Other characteristics
- ISO, DIN
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -30 °C
(-22 °F)
Description
Wafer type butterfly valve for installation between flanges EN 1092, PN 10/16, ASME class 150. Two-piece body, self-centring, one-piece disc and stem, bubble-tight up to 16 bar, vacuum-tight.
Face-to-face dimension DIN EN 558 line 20 API 609 table 1
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 leakage rate A
Certifications CE-Marking, TA Luft, FDA approval, food certification 1935/2004, ATEX
Industries and applications
Engineering
Colouring, Varnish, Dyeing factories
