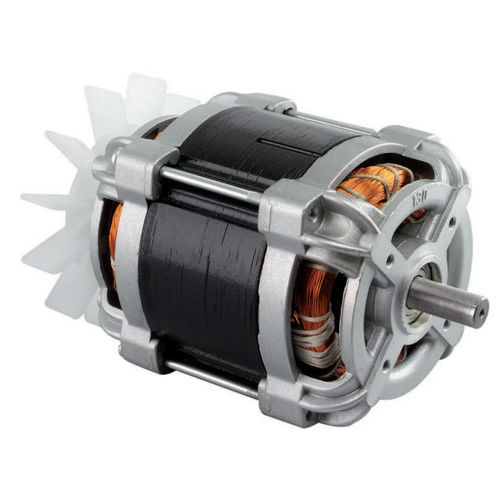

Single-phase motor Es 90 seriesasynchronous230 V110 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- asynchronous
- Voltage
- 230 V, 110 V
- Configuration
- capacitor, open-frame type
- Number of poles
- 2-pole
- Other characteristics
- custom, high-torque
- Power
224.6 W, 359.9 W, 460.7 W
(0.305 hp, 0.489 hp, 0.626 hp)- Intensity
1.65 A, 2.4 A, 3.05 A
- Torque
0.078 Nm, 0.125 Nm, 0.16 Nm
(0.0575 ft.lb, 0.0922 ft.lb, 0.118 ft.lb)- Rotational speed
2,750 rpm
(17,278.76 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat. class: B, optional F
System of protection: IP 00 (open design)
Special model: Design for short-time duty with high performance, Alloy rotor for higher starting torque
Options: Thermal protection, special shafts, custom designed
