- Spur gear reducer
- Gefeg-Neckar Antriebssysteme GmbH

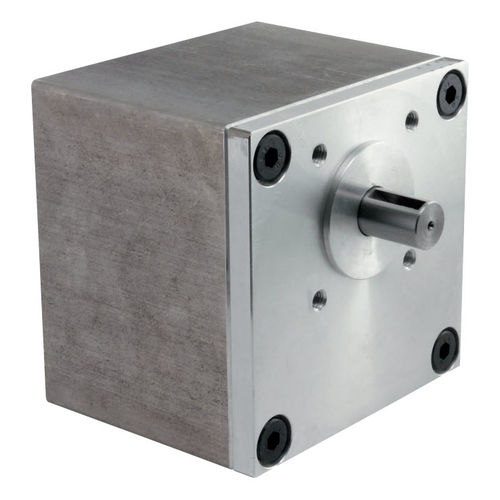

Spur gear reducer M 10parallel-shaft20 - 50 Nm10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- spur
- Shaft orientation
- parallel-shaft
- Torque
- 20 - 50 Nm, 10 - 20 Nm
- Number of stages
- three-stage, two-stage, four-stage
- Applications
- for electric motors
- Other characteristics
- aluminum
- Rotational speed
5,000 rpm
(31,415.93 rad.min-1)- Gear ratio
Max.: 260 unit
Min.: 5 unit
Description
General: Multi-stage, closed spur gear for use in combination with our motors. Single gear with ball-bearing ingoing shaft (2 bearings back-to-back). Lifetime grease lubrication
Housing: Machined from massive aluminum. User-defined installation. Mounting possibility from all accessible sides
Tooth system tech.: Individually guided gear-pinion combinations. Ingoing stage with oblique teeth. Ball bearing end shaft
Options: Planet gears
