- Gefeg-Neckar Antriebssysteme GmbH

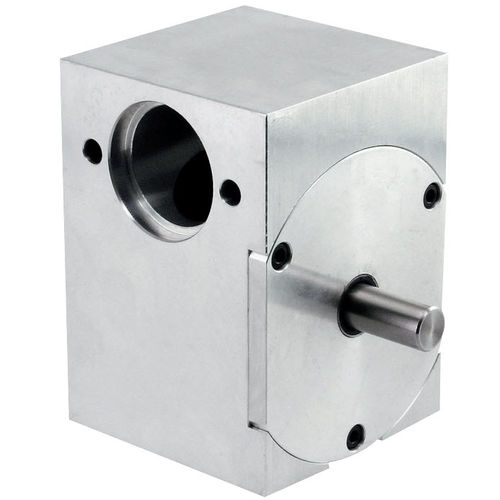

Worm gear reducer S 769right angle10 - 20 Nm5 - 10 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Torque
- 10 - 20 Nm, 5 - 10 Nm
- Number of stages
- single-stage
- Applications
- for electric motors
- Other characteristics
- aluminum
- Rotational speed
4,500 rpm
(28,274.33 rad.min-1)- Gear ratio
Min.: 5 unit
Max.: 90 unit
Description
General: Single-stage worm gear for use in combination with our motors. Special design as a free-standing gear unit with ball-bearing ingoing shaft. Lifetime grease lubrication
Housing: Massive aluminum, mounting possibilities from all accessible sides
Output: Power deviation 90°, second shaft end possible. Self-locking with great gear reduction (η < 50%)
Options: Special shaft, second shaft end
