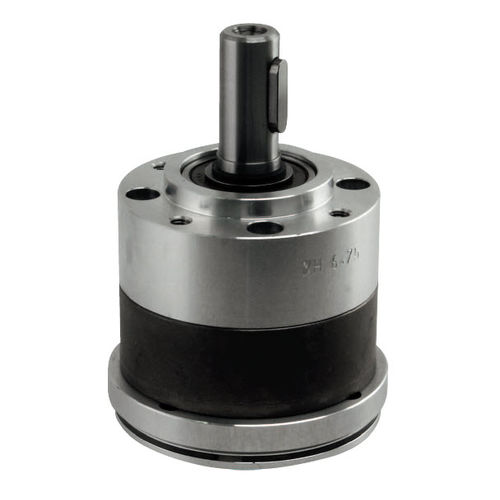

Planetary gear reducer PM 60coaxial20 - 50 Nm5 - 10 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 20 - 50 Nm, 5 - 10 Nm
- Mounting
- shaft-mounted, flange-mounted
- Number of stages
- single-stage, three-stage, two-stage
- Applications
- for electric motors
- Other characteristics
- aluminum
- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)- Backlash
1 °, 1.5 °, 2 °
- Gear ratio
Max.: 308 unit
Min.: 3.7 unit
Description
General: Multi-stage, closed planet gear for use in combination with our motors. Lifetime grease lubrication
Housing: Steel annulus, aluminum flange. User-defined installation
Tooth system tech.: Internal gearing, hardened annulus. Directly toothed motor shaft, optional shaft-mounted pinion. Ball bearing end shaft
Options: Special shafts
