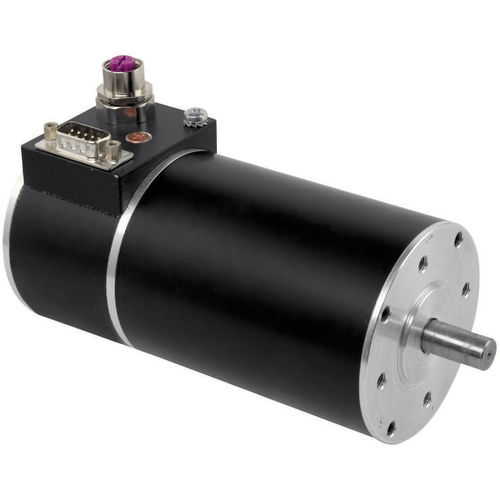

DC motor MSA 863brushless24 VIP65
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V
- Protection class
- IP65, IP44
- Configuration
- permanent magnet, with integrated driver and coder
- Number of poles
- 4-pole
- Other characteristics
- motion controller, CANopen, PROFIBUS DP
- Power
144 W
(0.196 hp)- Intensity
7.8 A
- Torque
0.038 Nm
(0.028 ft.lb)- Rotational speed
3,600 rpm
(22,619.47 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
CANopen, Profibus-DP, Integrated 4 Q controller, Sinus commutation, Absolute multi-turn encoder, Run records programmable
Rotor: 4-pole neodym magnet, low cogging
Life time: 20,000 h, S1 duty
Isolation class: B, optional F
Protection: Overtemperature protection, current limitation
