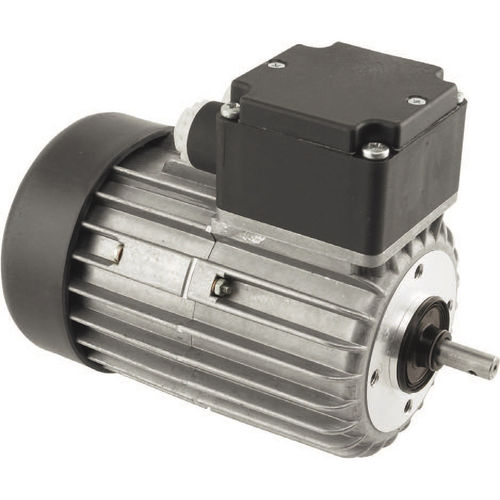

Three-phase motor Dg 71 seriesasynchronous400 VIP65
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- asynchronous
- Voltage
- 400 V
- Protection class
- IP65, IP44
- Number of poles
- 4-pole
- Other characteristics
- custom, high-performance
- Power
28 W, 34 W
(0.038 hp, 0.046 hp)- Intensity
190 mA, 230 mA
- Torque
0.021 Nm, 0.025 Nm
(0.0155 ft.lb, 0.0184 ft.lb)- Rotational speed
1,300 rpm
(8,168.14 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat.class: B, optional F
System of protection: IP 44, optional up to IP 65
Special model: Design for short-time duty with high performance
Options: Thermal protection, special shafts, custom designed, foot mounting
Catalogs
Dg 71
4 Pages
