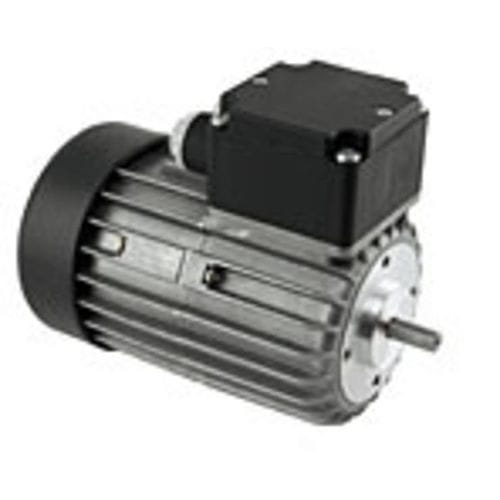

Single-phase motor Eg 71 series
asynchronous230 V110 V

Single-phase motor - Eg 71 series - Gefeg-Neckar Antriebssysteme GmbH - asynchronous / 230 V / 110 V
Single-phase motor - Eg 71 series - Gefeg-Neckar Antriebssysteme GmbH - asynchronous / 230 V / 110 V
Single-phase motor - Eg 71 series - Gefeg-Neckar Antriebssysteme GmbH - asynchronous / 230 V / 110 V - image - 2
Add to favorites
Compare this product


Characteristics

AC/DC
single-phase
Type
asynchronous
Voltage
230 V, 110 V
Configuration
capacitor
Number of poles
4-pole
Other characteristics
custom, high-torque
Power

12 W, 26 W, 29 W
(0.016 hp, 0.035 hp, 0.039 hp)

Intensity

260 mA, 350 mA, 360 mA

Torque

0.009 Nm, 0.019 Nm, 0.021 Nm
(0.0066 ft.lb, 0.014 ft.lb, 0.0155 ft.lb)

Rotational speed

1,300 rpm
(8,168.14 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Service life: 20,000 hours, S1 duty Insulation mat. class: B, optional F System of protection: IP 00 Special model: Design for short-time duty with high performance, Alloy rotor for higher starting torque Options: Thermal protection, special shafts, custom designed
