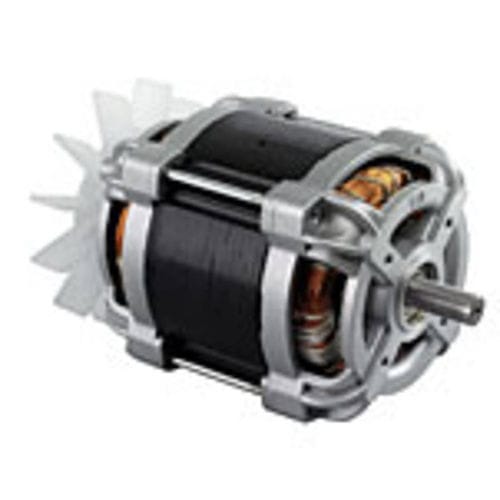

Single-phase motor Es 86 seriesasynchronous230 V110 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- asynchronous
- Voltage
- 230 V, 110 V
- Configuration
- capacitor, open-frame type
- Number of poles
- 4-pole
- Other characteristics
- custom, high-torque
- Power
55 W, 69 W, 92 W
(0.075 hp, 0.094 hp, 0.125 hp)- Intensity
659 mA, 786 mA, 1,000 mA
- Torque
0.039 Nm, 0.049 Nm, 0.065 Nm
(0.0288 ft.lb, 0.0361 ft.lb, 0.0479 ft.lb)- Rotational speed
1,350 rpm
(8,482.3 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat. class: B, optional F
System of protection: IP 00 (open design)
Special model: Design for short-time duty with high performance, Alloy rotor for higher starting torque
Options: Thermal protection, special shafts, custom designed
