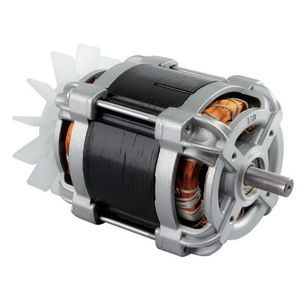

DC motor K 5 seriesasynchronous230 V110 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- asynchronous
- Voltage
- 230 V, 110 V
- Protection class
- IP65, IP40
- Configuration
- capacitor
- Number of poles
- 4-pole
- Other characteristics
- custom
- Power
3 W, 4.8 W
(0.004 hp, 0.007 hp)- Intensity
67 mA, 100 mA
- Torque
0.0024 Nm, 0.0038 Nm
(0.0018 ft.lb, 0.0028 ft.lb)- Rotational speed
1,200 rpm
(7,539.82 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat.class: B, optional F
System of protection: IP 40, optional up to IP 65
Special model: Design for short-time duty with high performance
Options: Thermal protection, special shafts, special flanges, custom designed
Catalogs
K 5
4 Pages
