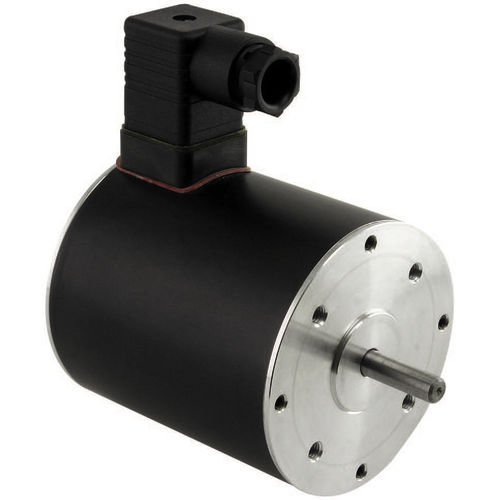

Single-phase motor K 95 seriesasynchronous230 V110 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- asynchronous
- Voltage
- 230 V, 110 V
- Protection class
- IP65, IP44
- Configuration
- stainless steel, capacitor
- Number of poles
- 4-pole
- Other characteristics
- custom
- Power
78 W, 106 W
(0.106 hp, 0.144 hp)- Intensity
660 mA, 850 mA
- Torque
0.057 Nm, 0.078 Nm
(0.042 ft.lb, 0.0575 ft.lb)- Rotational speed
1,300 rpm
(8,168.14 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat.class: F
System of protection: IP 44, optional up to IP 65
Special model: Design for short-time duty with high performance
Options: Thermal protection, special shafts, special flanges, custom designed, stainless steel
