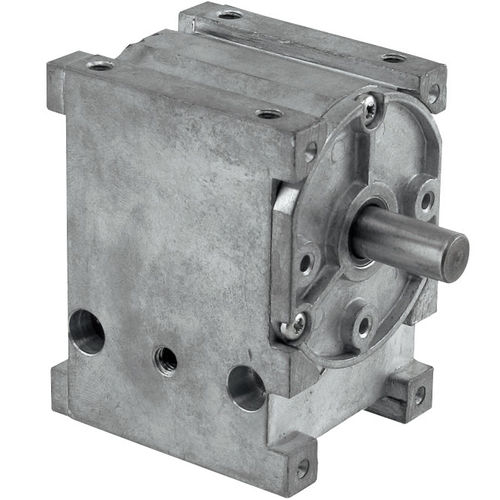

Worm gear reducer S 567
coaxial1 - 5 Nmsingle-stage

worm gear reducer
worm gear reducer
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
coaxial
Torque
1 - 5 Nm
Number of stages
single-stage
Applications
for electric motors
Rotational speed

4,500 rpm
(28,274.33 rad.min-1)

Gear ratio

Max.: 100 unit

Min.: 3.63 unit

Description

General: Single-stage worm gear for use in combination with our motors. Special design as a free-standing gear unit with ball-bearing ingoing shaft. Lifetime grease lubrication Housing: Zinc diecast system housing with mounting possibilities from all accessible sides Output: Power deviation 90°, 2nd shaft end possible. Self locking on higher gear reduction (η < 50%) Options: Special shaft, 2 shaft end
