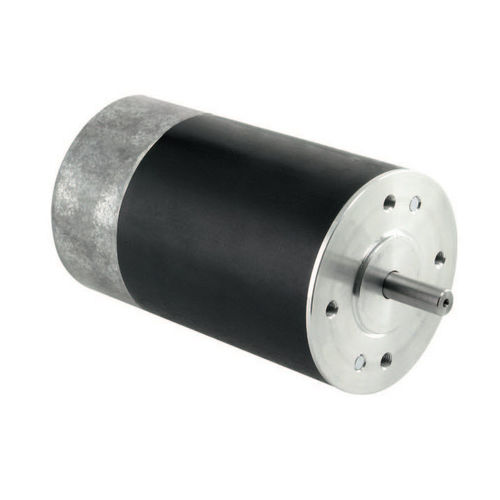

DC motor G 5brushless24 VIP65
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V
- Protection class
- IP65
- Configuration
- permanent magnet
- Number of poles
- 2-pole
- Other characteristics
- custom, high-performance
- Power
14 W, 26 W, 29 W
(0.019 hp, 0.035 hp, 0.039 hp)- Intensity
1 A, 1.5 A, 1.6 A
- Torque
0.0042 Nm, 0.008 Nm, 0.009 Nm
(0.0031 ft.lb, 0.0059 ft.lb, 0.0066 ft.lb)- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Connection: Connection to the power supply, battery, PWM controller or control amplifier, residual ripple of the operating voltage max. 5%, Cable connection, optional plug-in connector
Commutation: Mechanical commutation using a 12-part commutator
Magnetic system: 2-pole permanent ferrite magnet
Service life: 5,000 h, S1 duty
Insulation mat. class: B, optional F
Special model: Design for short-time operation with high performance, additional voltages and speeds upon request
Options: Special shafts, custom designed
Catalogs
G 5
2 Pages
