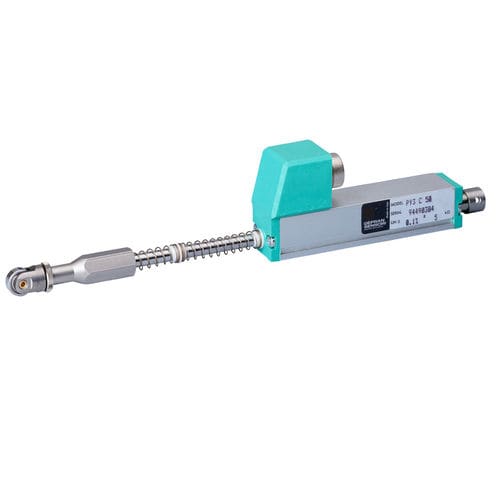

Linear displacement transducer PY3potentiometeranalogIP40
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Technology
- potentiometer
- Output signal
- analog
- Protection class
- IP40
- Other characteristics
- stainless steel, precision, ATEX
- Measuring range
Min.: 10 mm
(0.39 in)Max.: 100 mm
(3.94 in)- Measuring rate
Min.: 5 Hz
Max.: 2,000 Hz
- Ambient temperature
Min.: -50 °C
(-58 °F)Max.: 120 °C
(248 °F)
Description
Double support of the control rod and return spring
Tip with M2.5 thread and stainless steel precision bearing
Independent linearity up to ± 0.1%
Infinite resolution
No variation of electrical signal outside theoretical electrical stroke
Inhibited rotation of the control rod
Displacement speed up to 10 m/s
Electrical connections:
PY3 F 3-pole 1m. screened cable 1m
PY3 C 5-pole connector DIN43322
Life duration: > 100x106 operations (within C.E.U.)
Suitable for use in explosive environments with presence of gas (groups IIA, IIB, IIC) and combustible powders.
Standards for simple device:
ATEX CEI EN 50020 2003 - paragraph 5.4 a
