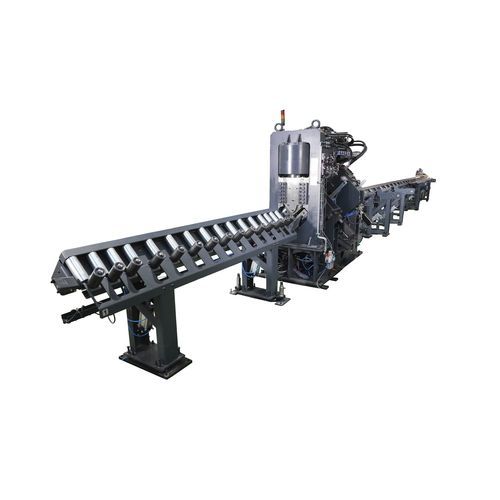

CNC punching line GT 200

hydraulicfor angle piecesfor bars

The Gamma Traction 200 | GT 200 solution belongs to the Gamma series of CNC punching machines series of punching machines. This model of angle cutter is characterised by its ability to process, punch, cut and mark angles, flat bars and U-profiles. It is a CNC punching machine with 3 punches on each side, which allows up to 6 punches of 31mm diameter to be made. This machine allows the cutting of angles and U-profiles with a maximum of 200x200x20 mm. Thanks to its hydraulic extractor stop, it achieves a punching and cutting power of up to 730 kN and 3200 kN respectively. This model has a five-reference marking unit via cassette and achieves up to ten characters per 10×6 mm reference. This corner cutting solution features an automatic loader, a material unloading system and Line Pro software, which makes the user interface much simpler. In particular, the Line Pro software allows the machine to be controlled via a PC and remote support is available via the internet. GT 200 is a CNC line that gives you confidence, safety and agility in your processes. Options available for the Gamma Traction 200 angle cutter Automatic loader. Material unloading system. Line Pro software.
