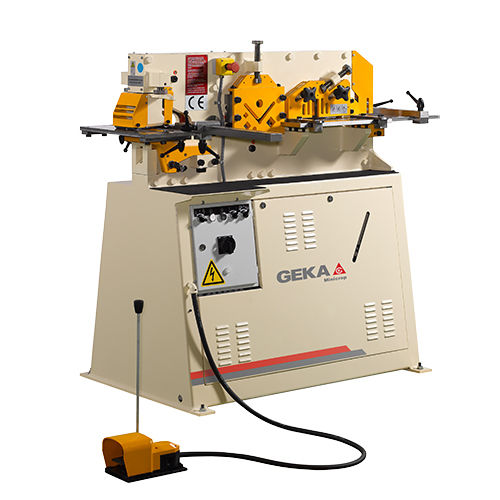

Semi-automatic ironworker MINICROP

hydraulicbarcutting

Minicrop is one of Geka´s one-cylinder punching and shearing machines. It has 4 workstations for the following Ironworker tasks: Punching: The punching power within this workstation can reach 45 tons and its maximum diameter capacity is Ø 28×10 mm. The punching station is provided with a goose neck die holder that admits the user to punching in U and L profiles in the leg and on the web. This punching station has the following additional features: Adjustable stripper Off- set punches for small angles Positioning table with removable front for F punching tasks, leg down. Blade-holder Sandwich structure and monoblock body Safety protection Notching: Rectangular notching equipment provided with a machined worktable and scaled stops. Shearing flat bars: Minicrop can shear flat bars with a maximum width of 300 x 10 mm or 200 x 13 mm. It can shear at U and L profiles up to 100 mm with its optional blades. The blades of the Minicrop´s shearing station have a unique radial geometry and thank to it they can complete shearing tasks with minimum deformation. Some additional features of the shearing flat bars workstation are: End switches for travel setting Adjustable play between flat bar blades Material clamping guide Cutting of flat plates
