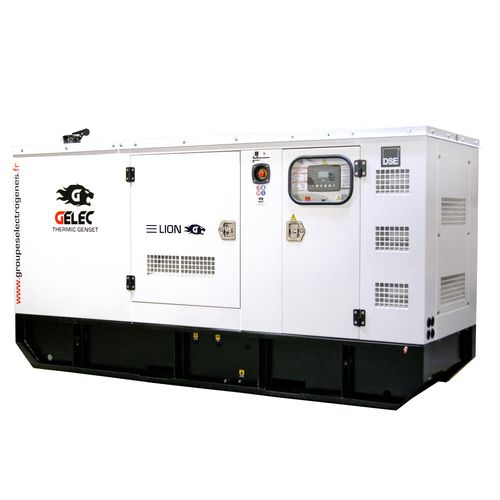

Diesel generator set LION-500YC

three-phasestationary50 Hz

Number of cylinders: 6 Governor type: electronic Specifications: 4-cycle engine, direct fuel injection , liquid-based cooling Displacement: 12,94 L Compression ratio: 16,5:01 Engine starting type: electrical 24V Air inlet system: Turbocompressed, air-air intercooler Tank capacity: 1140 litres (5000 litres for long-range use) Autonomy on 75% charge: 16 hours Autonomy on 75% charge (long range): 60 hours Alternator specifications: Excitation system: Self Excited AVR: Stamford Voltage regulation type: electronic The LION has been specially created to support high demands. To this end, GELEC has integrated large displacement engines, from 6 to 12 cylinders. The aim is to obtain maximum torque to withstand high load demands, which enables the LION range to deliver up to 2000 Amps, as this demand can occur suddenly. This type of generator, which is used in industrial environments, must also meet very high production requirements over long periods in order to ensure, for example, permanent production. This diesel generator meets the needs of industry, the army, civil security, telecommunications, power stations, construction, logistics warehouses, shopping centres and hypermarkets, high-rise buildings and public institutions such as police stations, courthouses, etc. This industrial generator is equipped with a 4-pole magneto-thermal circuit breaker with adjustable differential. It can be fitted with an optional source inverter and comes with a 3-year or 1000-hour warranty in mainland France. It has a 1 year or 500 hours warranty in the DOM-TOM and abroad.
