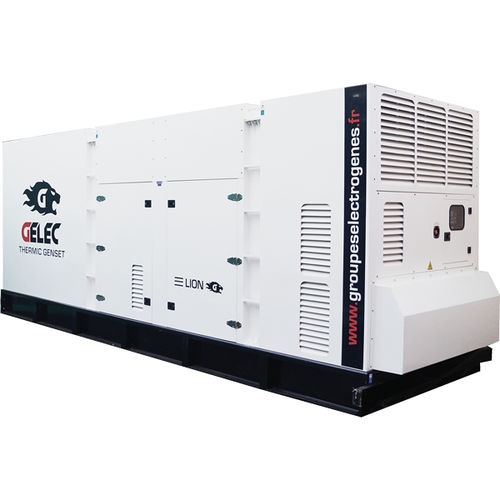

Diesel generator set LION-2000YCE3
three-phasestationary50 Hz

Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 2
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 3
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 4
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 5
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 6
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 7
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 8
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 9
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 10
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 11
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 12
Diesel generator set -  LION-2000YCE3 - GELEC ENERGY - three-phase / stationary / 50 Hz - image - 13
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Fuel System
direct fuel injection
Applications
emergency, industrial, for construction site, for military applications, for telecom applications, for railway applications, for mining
Power in kVA

1,875 kVA, 2,000 kVA
(2,549.29 hp, 2,719.24 hp)

Rated capacity

1,500 kW, 1,600 kW
(2,039.4 hp, 2,175.4 hp)

Voltage

Max.: 400 V

Min.: 230 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Description

Number of cylinders: 12 Governor type: electronic Specifications: 4-cycle engine, direct fuel injection , liquid-based cooling Displacement: 79,17 L Compression ratio: 13,5:1 Engine starting type: electrical 24V Air inlet system: Turbocompressed-intercooler Alternator specifications: Excitation system: Self Excited AVR: Stamford Voltage regulation type: electronic The Lion range, with a power range, has been specially created to support high demands. GELEC has integrated large displacement engines, from 6 cylinders to V12. The aim is to obtain maximum torque to withstand high load calls and to enable our diesel generators to deliver up to 2000 Amps, as this demand can occur suddenly. This type of generator, which is used in industrial environments, must also meet very high production requirements over long periods of time in order to ensure permanent production, for example. This EURO3, 12-cylinder diesel generator set meets the needs of industry, the army, civil security, telecommunications, power stations, construction, logistics warehouses, shopping centres and hypermarkets, high-rise buildings (IGH) as well as public institutions such as gendarmeries and courthouses etc. This industrial generator is equipped with a 4-pole magneto-thermal circuit breaker with adjustable differential and a DEEPSEA control panel. It can be fitted with an optional source inverter and comes with a 3-year or 1000-hour warranty in mainland France. It has a 1 year or 500 hours warranty in the DOM-TOM and abroad.

Catalogs

No catalogs are available for this product.

See all of GELEC ENERGY‘s catalogs
