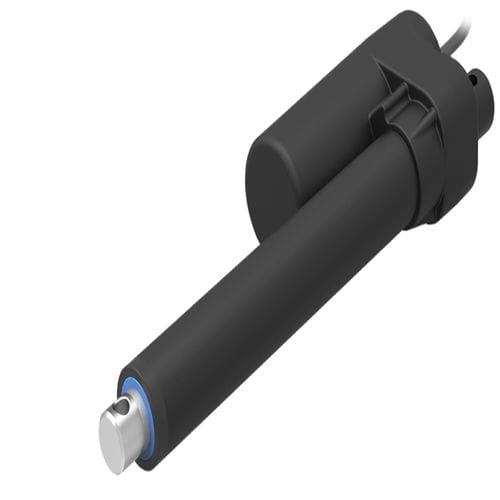

Linear actuator HTA20

electricDC12 V

HTA20 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP69K Alternatively, TA Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate.. General Features Voltage of motor: 12V DC, 24V DC 36V DC, Maximum load: 4,500N in pull/push Maximum speed at full load: 90mm/s ( load 500N) The slowest speed at full load: 5mm / s (Load 4,500N) Stroke: 50~600mm Minimum dimensions: Stroke + 140 mm (S＜300mm) Stroke + 150 mm (S＞300mm) Color: Silver gray or black IP rating: IP69K Operational temperature range: -40°C~+55°C Operational temperature range at full performance: -40°C~+55°C Higher duty cycle (25%), Other options: Hall sensor High strength metallic zinc alloy housing protects motor and gear Built-in limit switches (not adjustable)
