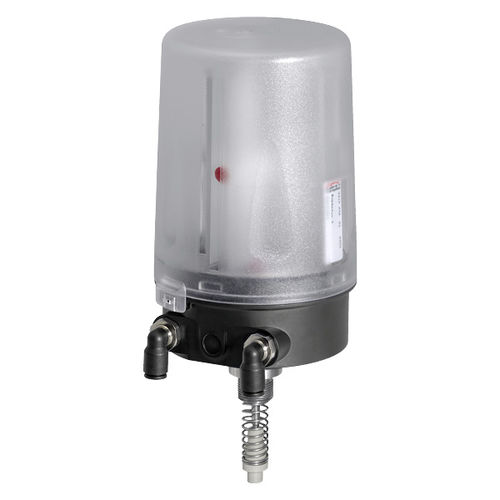

Valve controller with integrated solenoid valve 4242

The GEMÜ 4242 combi switchbox is suitable for mounting to pneumatically operated linear actuators. The position of the valve spindle is reliably electronically detected and evaluated using play-free and non-positive mounting. Integrated pilot valves enable direct activation of the process valve connected to them. Intelligent microprocessor controlled functions make commissioning and support during operation easier. The current position of the valve is displayed via high visibility LEDs and fed back via electrical signals. Fieldbus connection AS-Interface and DeviceNet (optional) Communication and programming interface IO-Link Adjustable switch point tolerances Speed-AP function for fast mounting and initialisation High visibility position indicator by LED Can be fitted to GEMÜ valves or third-party actuators On-site or remote end position programming via programming input Integrated manual override Technical specifications Ambient temperature:0 to 60 °C Linear measuring range:2 to 75 mm Flow rate:14 Nl/min | 23 Nl/min | 250 Nl/min Supply voltage:24 V DC Mode of action:Double acting | Single acting Communication modes:AS-Interface | DeviceNet | IO-Link Electrical connection types:M12 plug Protection class:IP 65, IP 67 Conformities:ATEX | EAC | ETL Listed C US | Functional safety | IECEx
